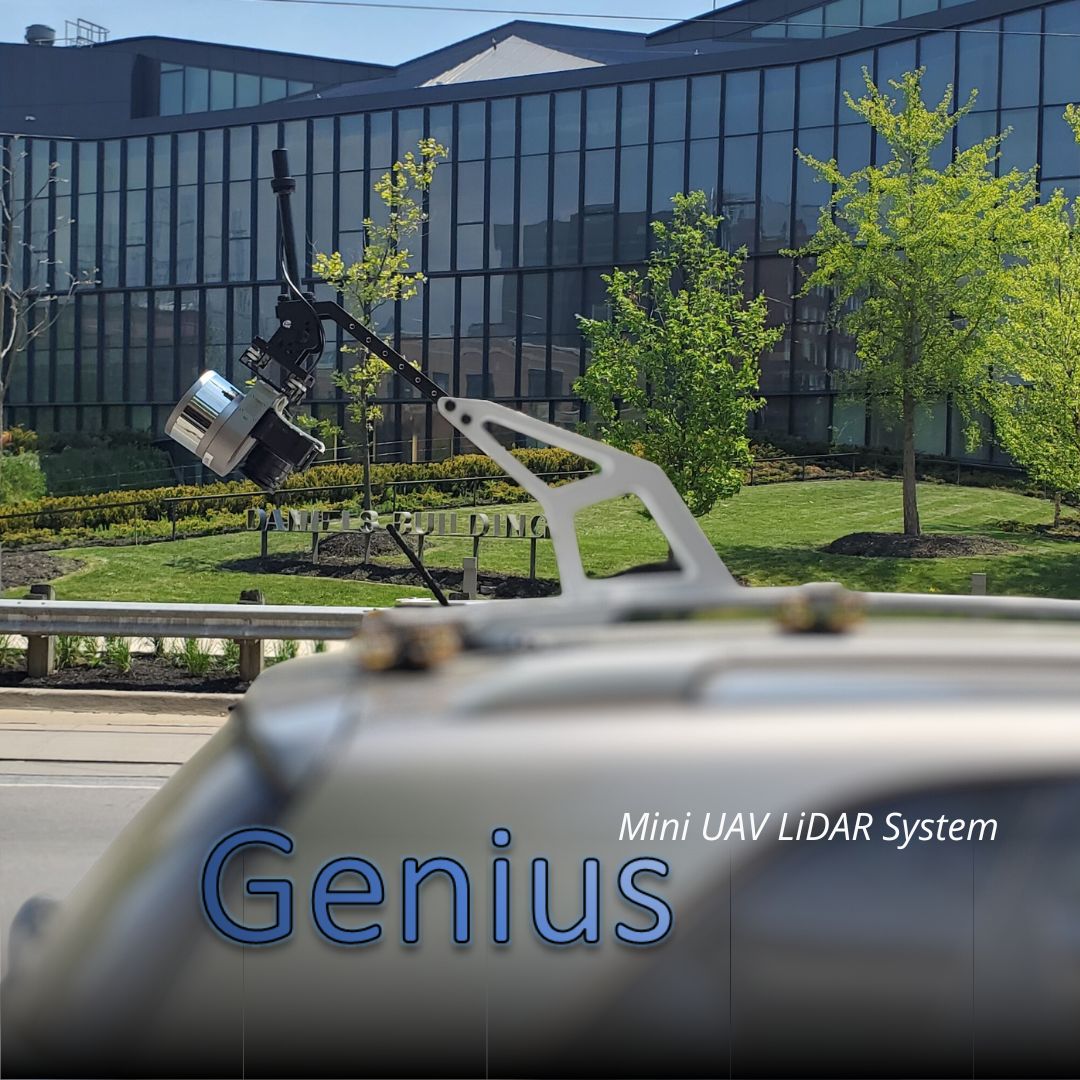

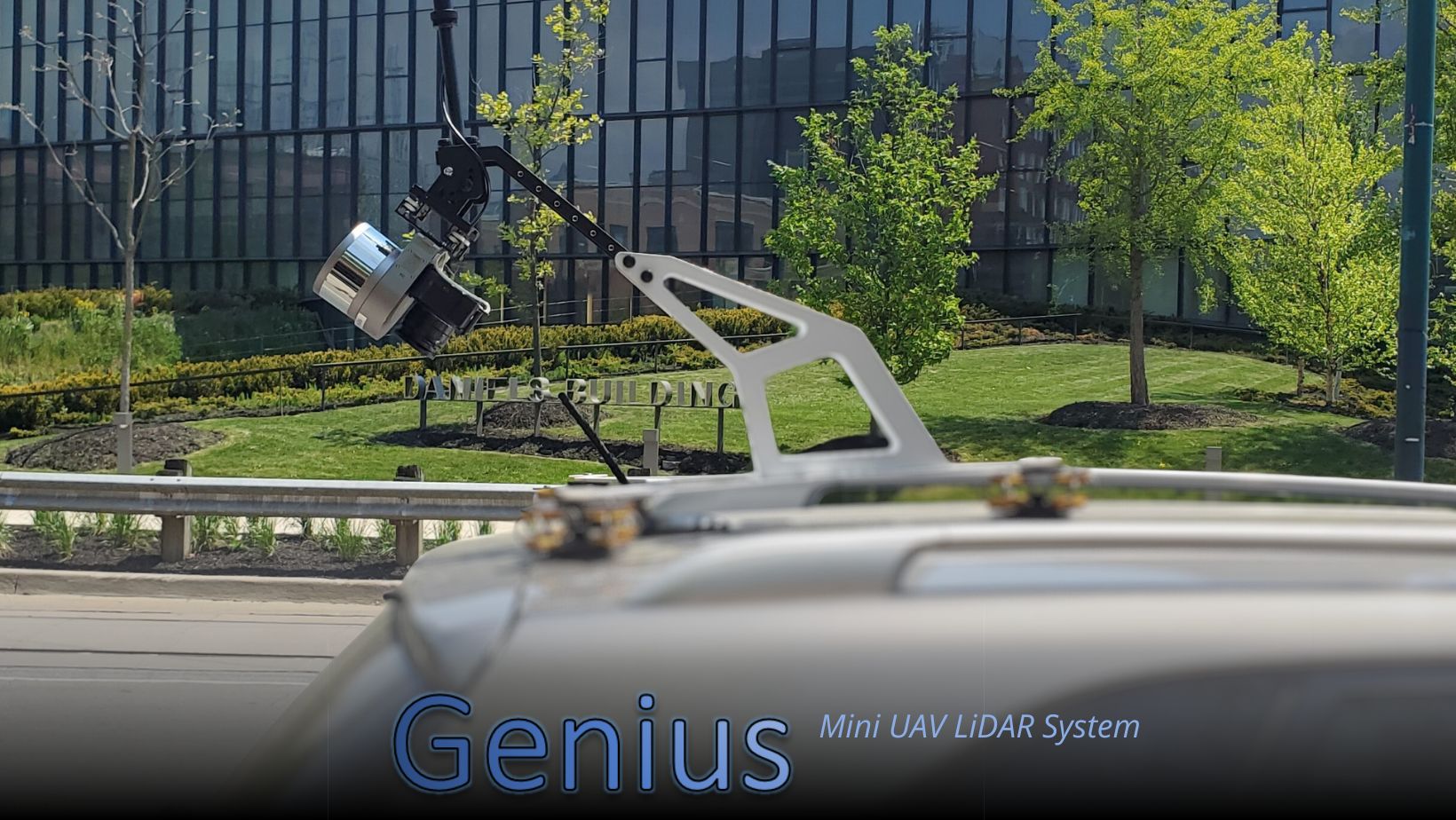

GENIUS

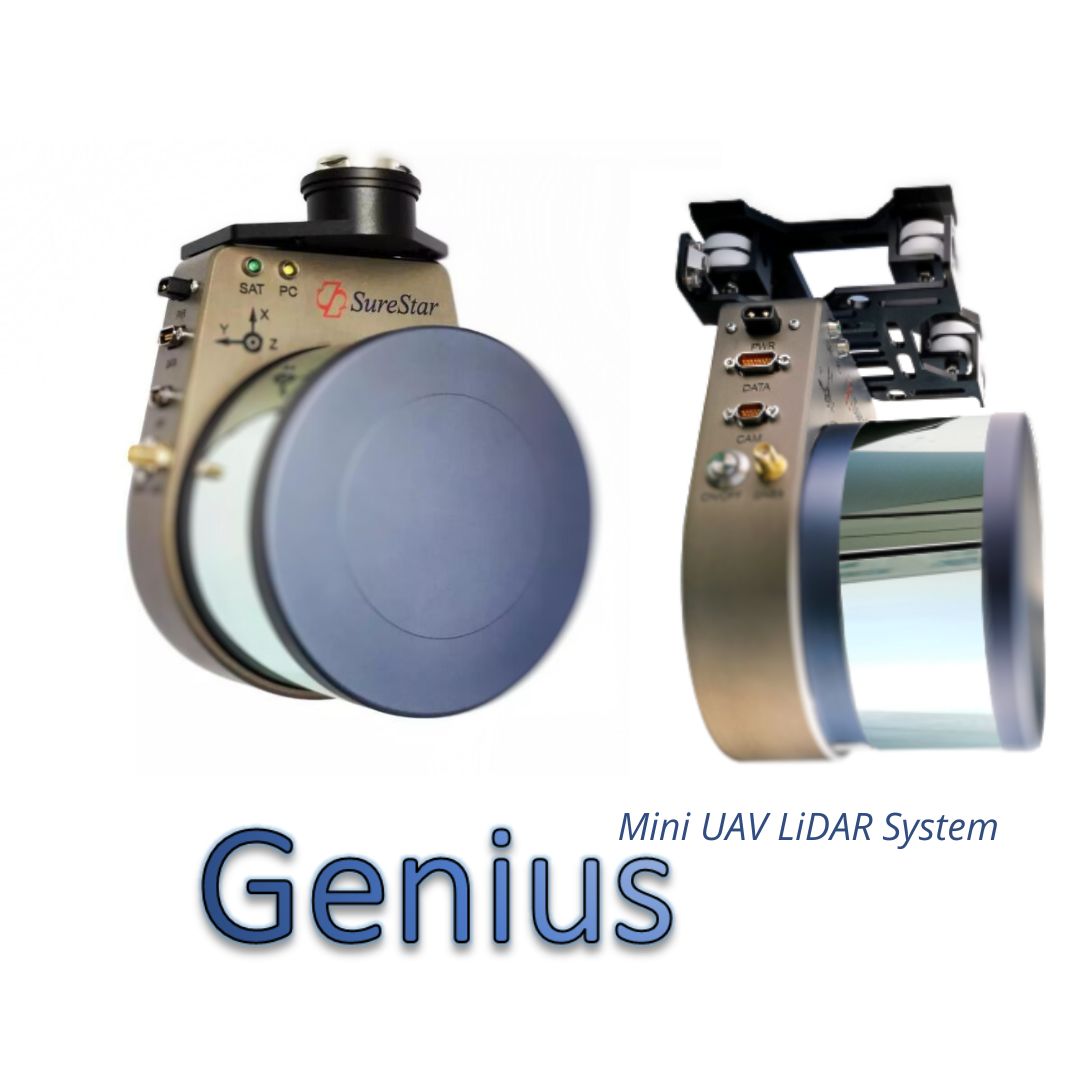

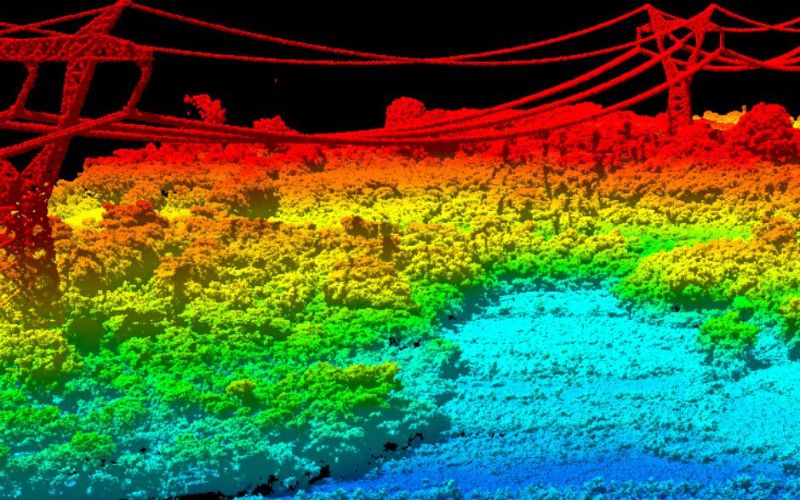

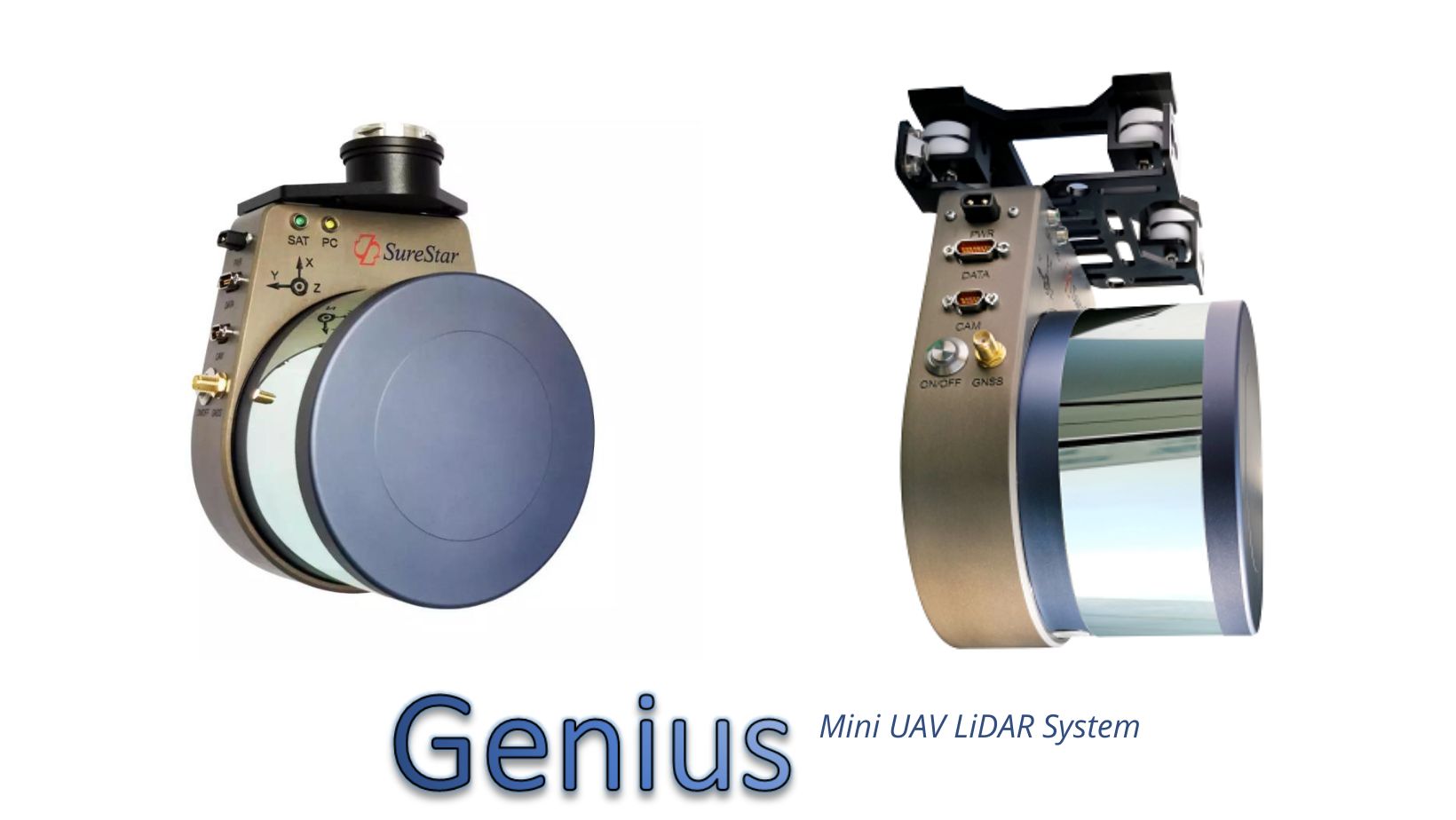

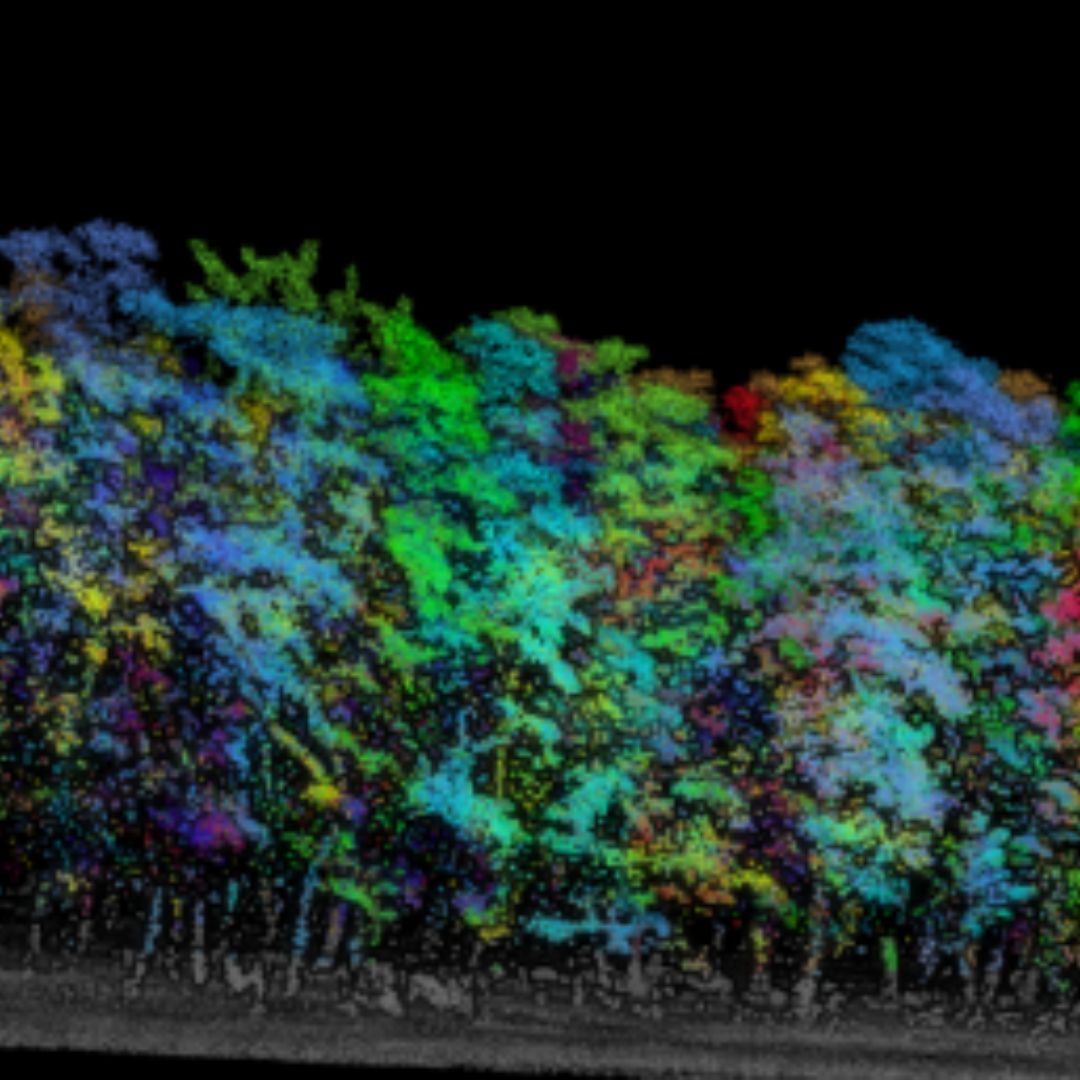

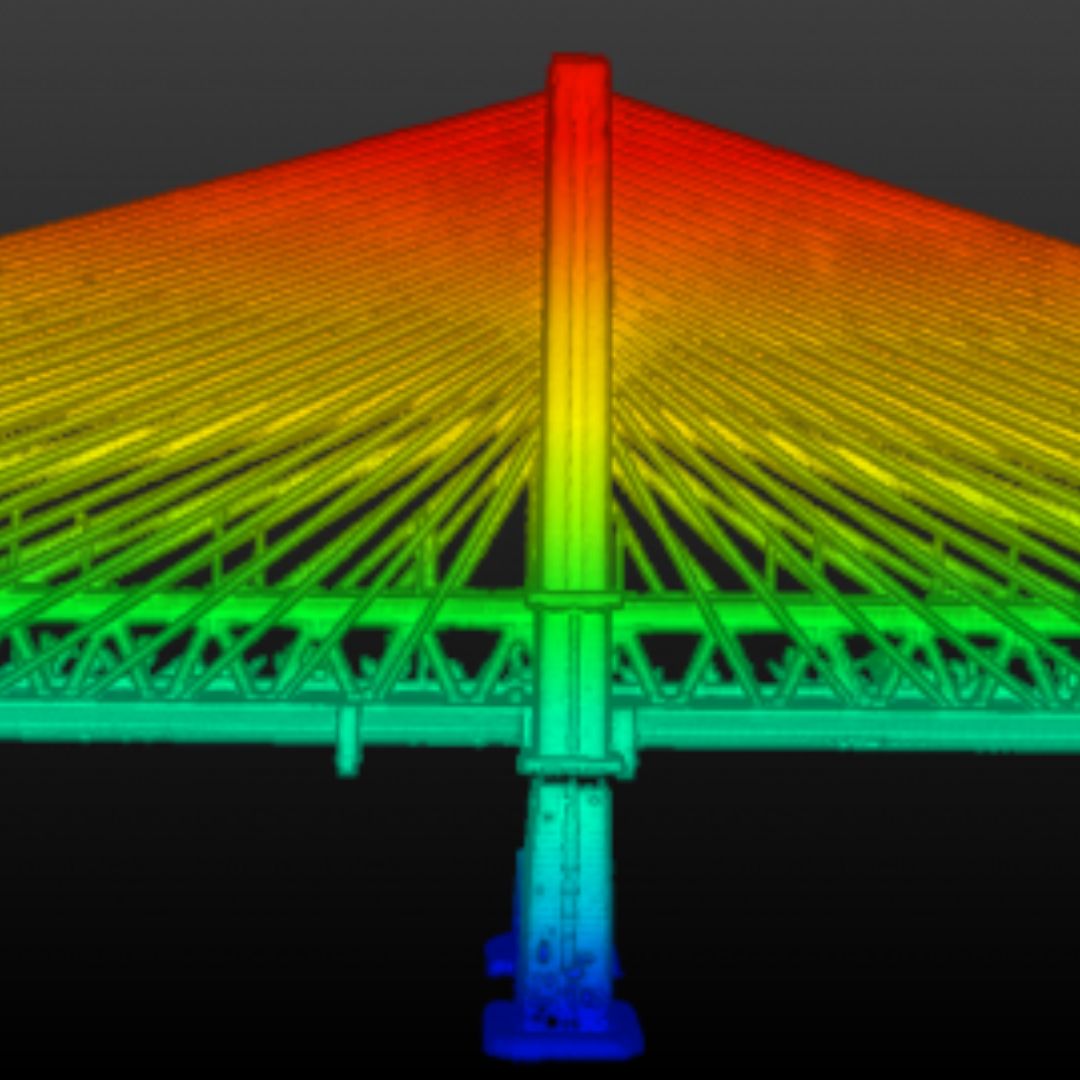

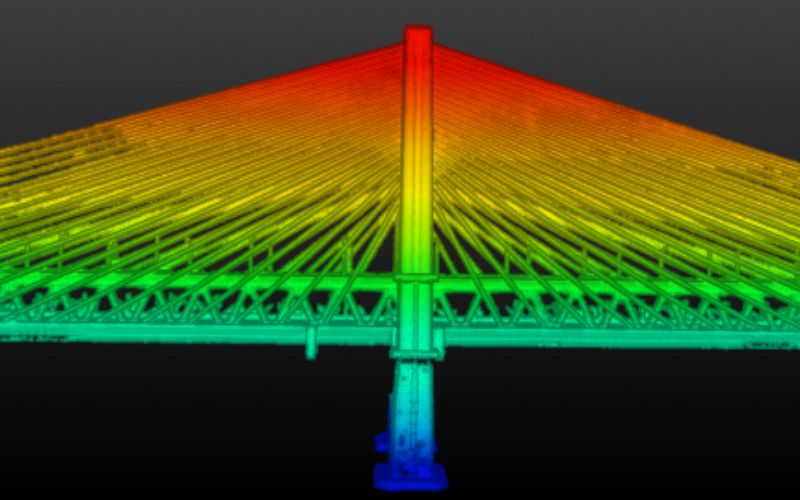

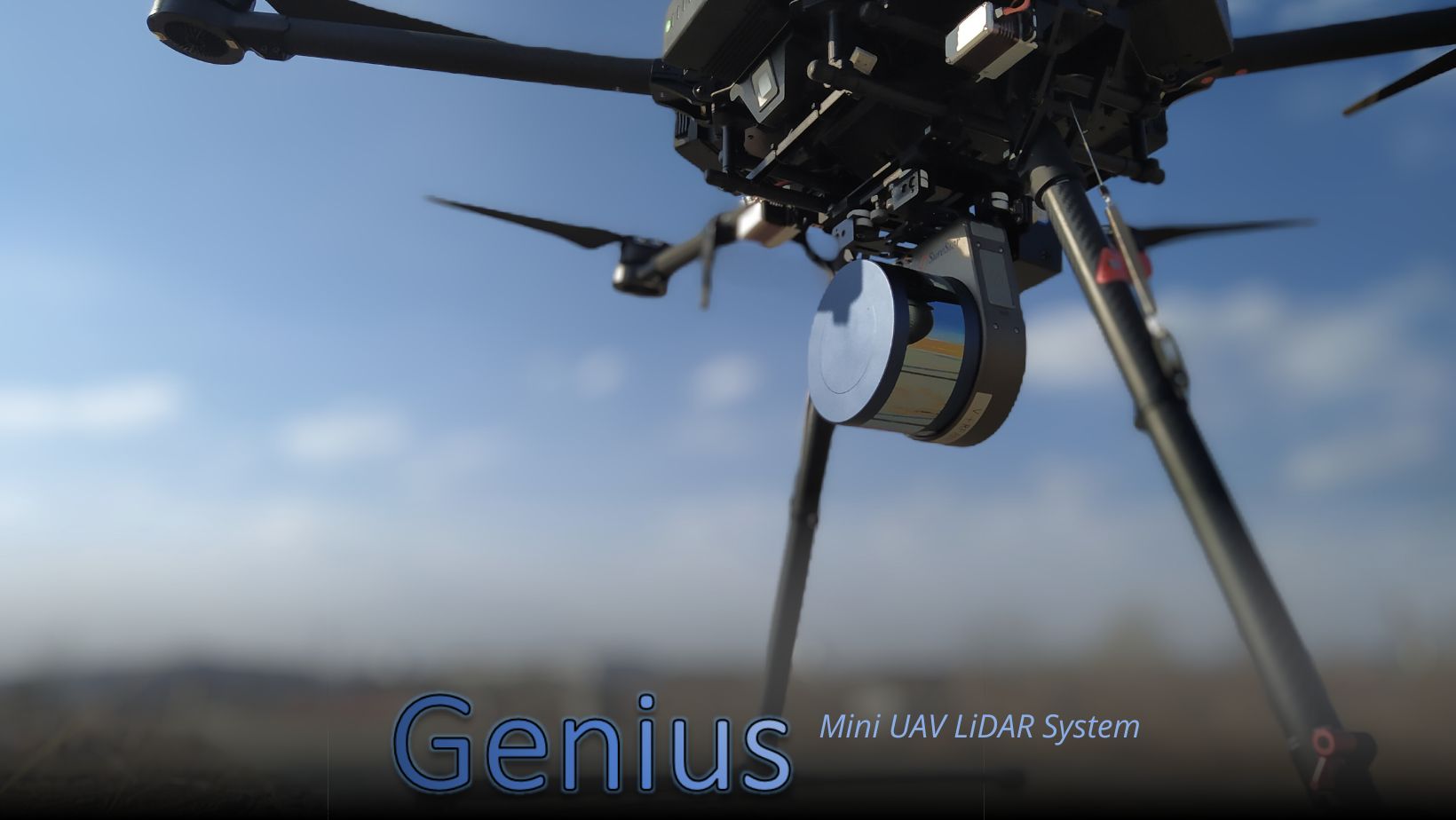

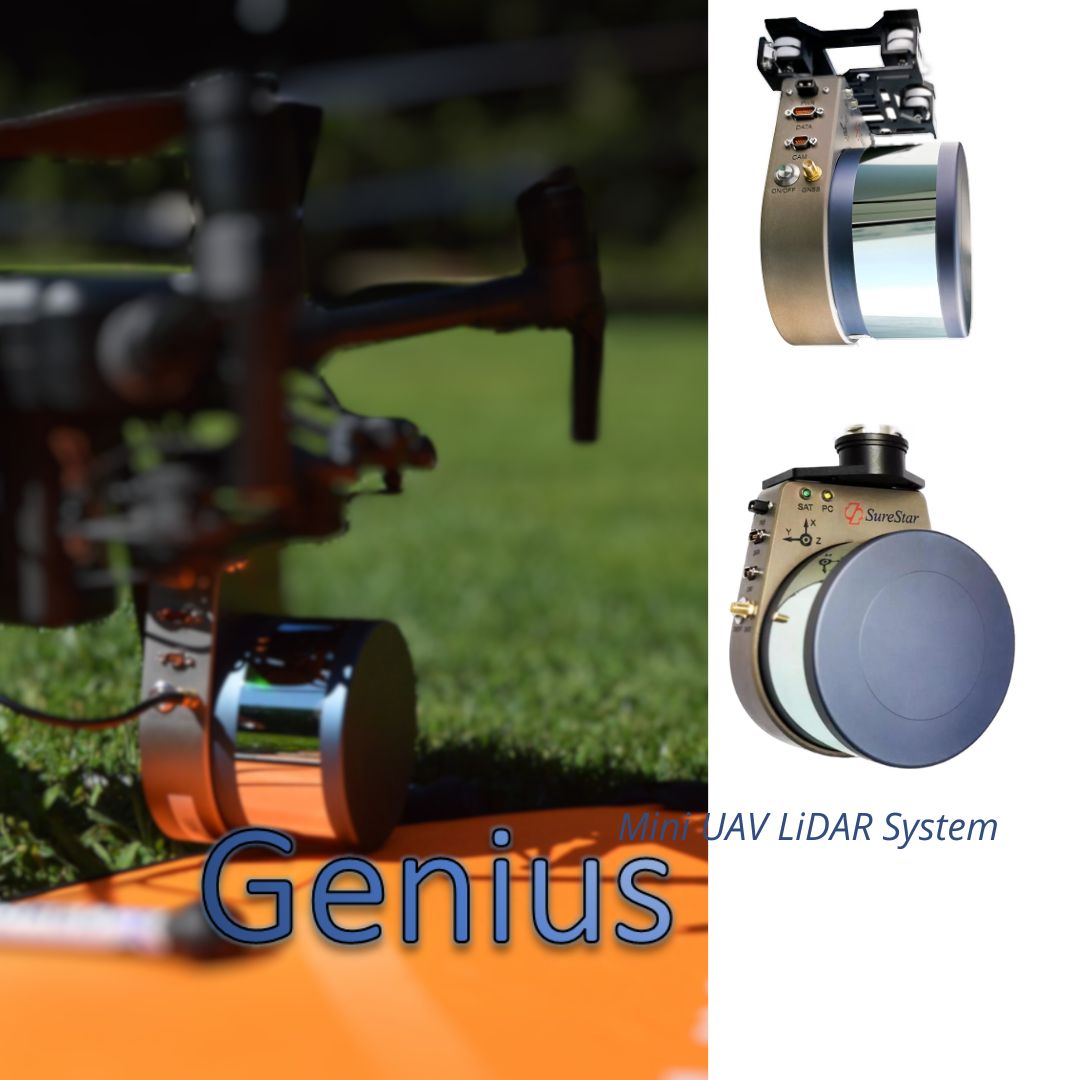

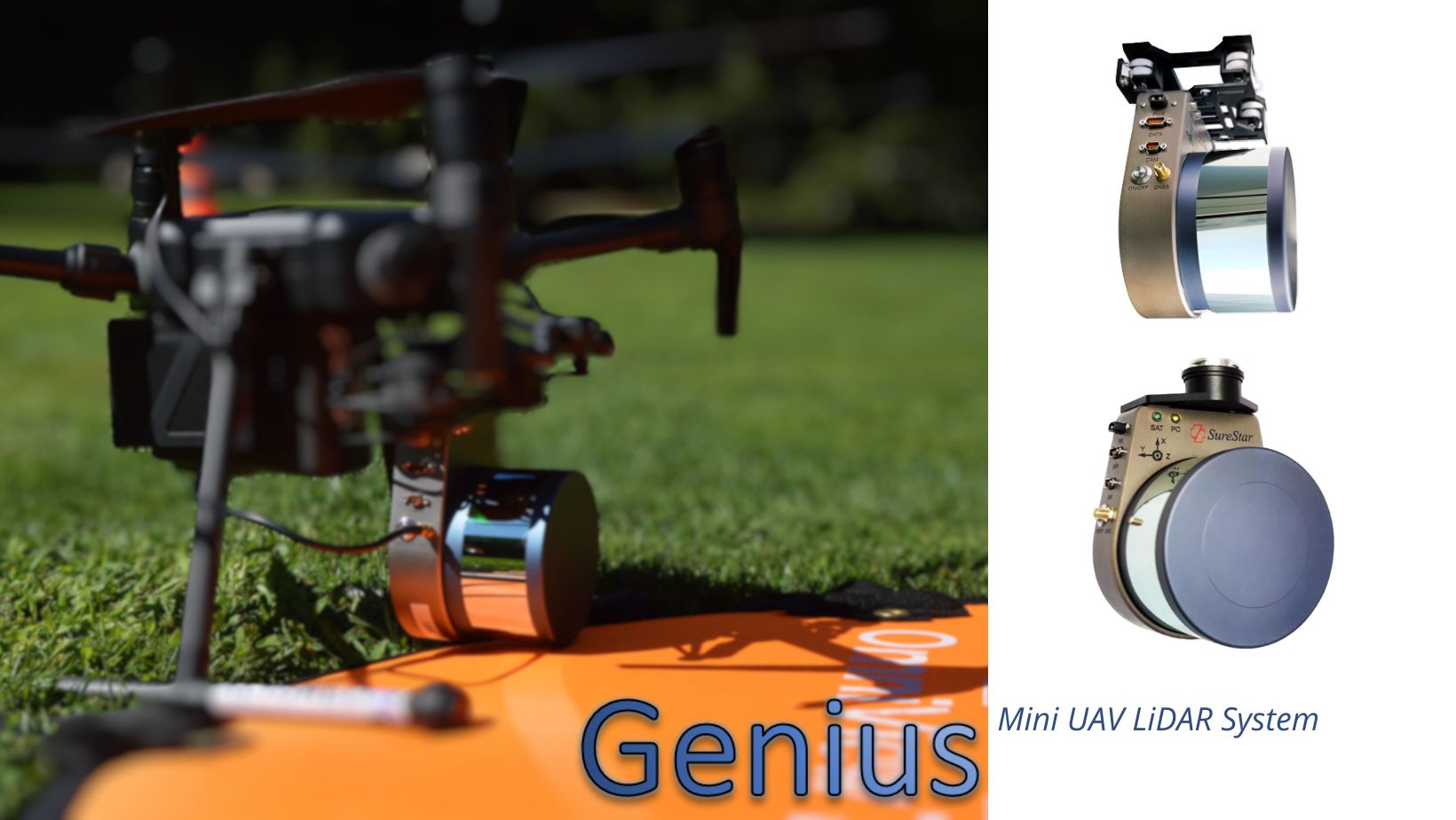

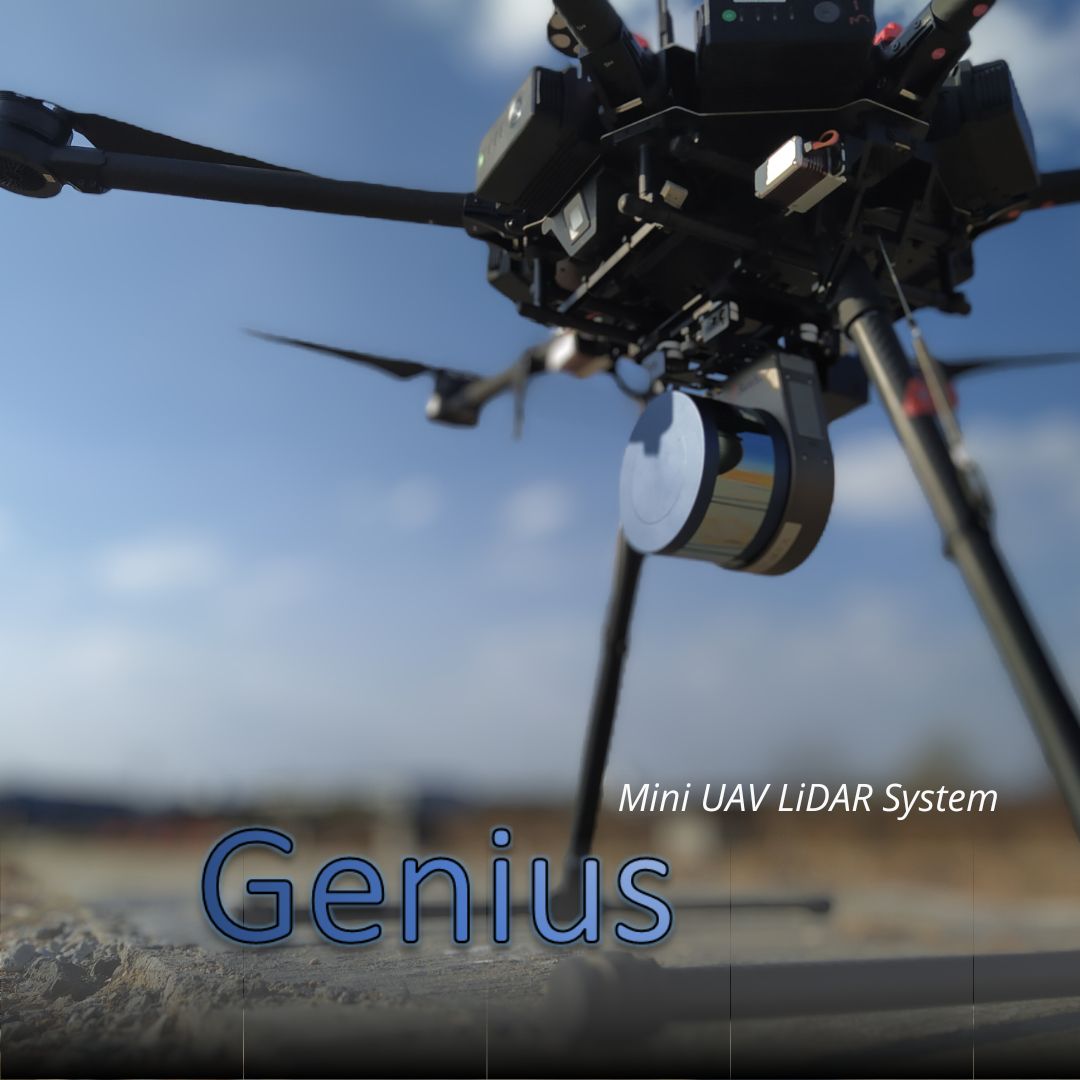

The Genius is a cost-effective complete LiDAR solution with Trimble Applanix PCS & IMU integrated onboard. With accuracy levels >10cm, ultra-light (>1.2kg), highly integrated, easy to operate (one button operation) and highly portable. The Genius comes in two models, a 16 or 32 channel configuration (320,000 or 640,000 points per second). Both the 16 and 32 channel models are the same weight and size factor due to its modular design and unique semi-conductor assembly process. The Genius mini LiDAR is an affordable solution that adapts to most UAV systems on the market. Its highly integrated design gives the Genius its performance, stability and portability. This solution enables surveyors to rapidly obtain Digital Surface Models (DEM & DTM) and high resolution images for efficient geospatial applications.
Specification
Highly integrated design gives the Genius Mini Lidar its performance, stability and portability.
- 1
Over 200 points per meter squared
• Cost effective mapping grade lidar solution• Elliptical scan pattern
- 2
2cm laser precision
• 10cm vertical accuracy• 250m range measurements
- 3
640kHz or 320kHz
• (640,000 points per second fired to the ground) or 320kHz (320,000 points per second fired to the ground) options• Ultra light weight >1.2KG
- 4
Applications
